Inline Conveyor Washers for Elevator Traction Sheave
- Heavy-Duty Load Design
- Multi-Angle Blind Hole Cleaning
- Mobile Air Knife Drying
Inline Conveyor Washers for Elevator Traction Sheave
Elevator Traction Sheave Tunnel Cleaning Machine is a cleaning and drying system designed and manufactured by GTK engineers for world-renowned manufacturers of elevator components.
This product belongs to GTKClean's Industrial Parts Washers range and is configured around the part, contamination, cleanliness target and required capacity.
Related Products For Your Business
Inline Cleaning Systems for Elevator Traction Sheave
Inline Cleaning Machines are also called conveyor belt parts cleaning machines, conveyorized parts washers/cleaners, conveyor through parts washers, inline parts cleaners, pass-through conveyor parts washers and conveyor parts washers.

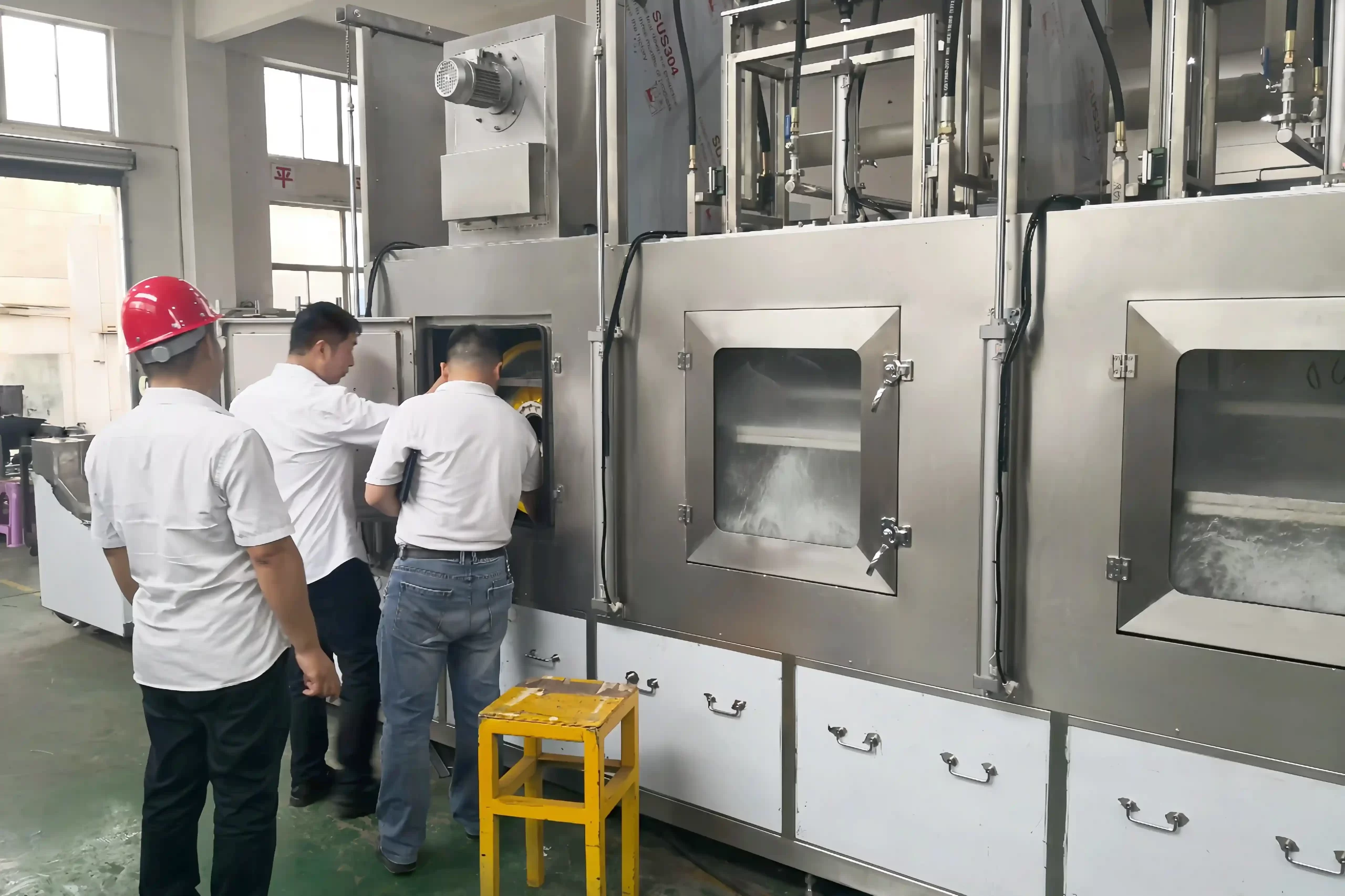

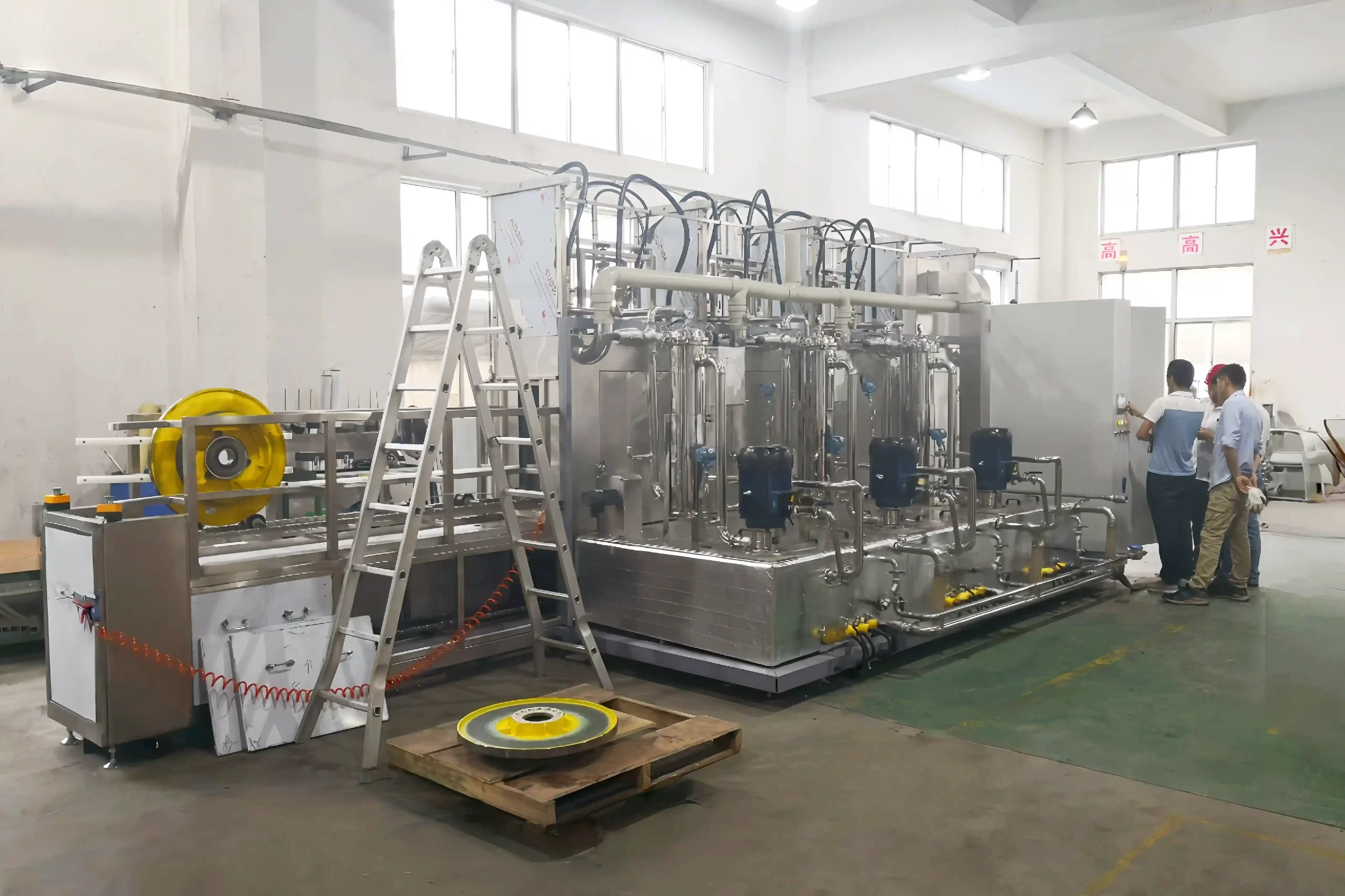

Elevator Traction Sheave Tunnel Cleaning Machine is a cleaning and drying system designed and manufactured by GTK engineers for world-renowned manufacturers of elevator components.
Key Design and Manufacturing Features:

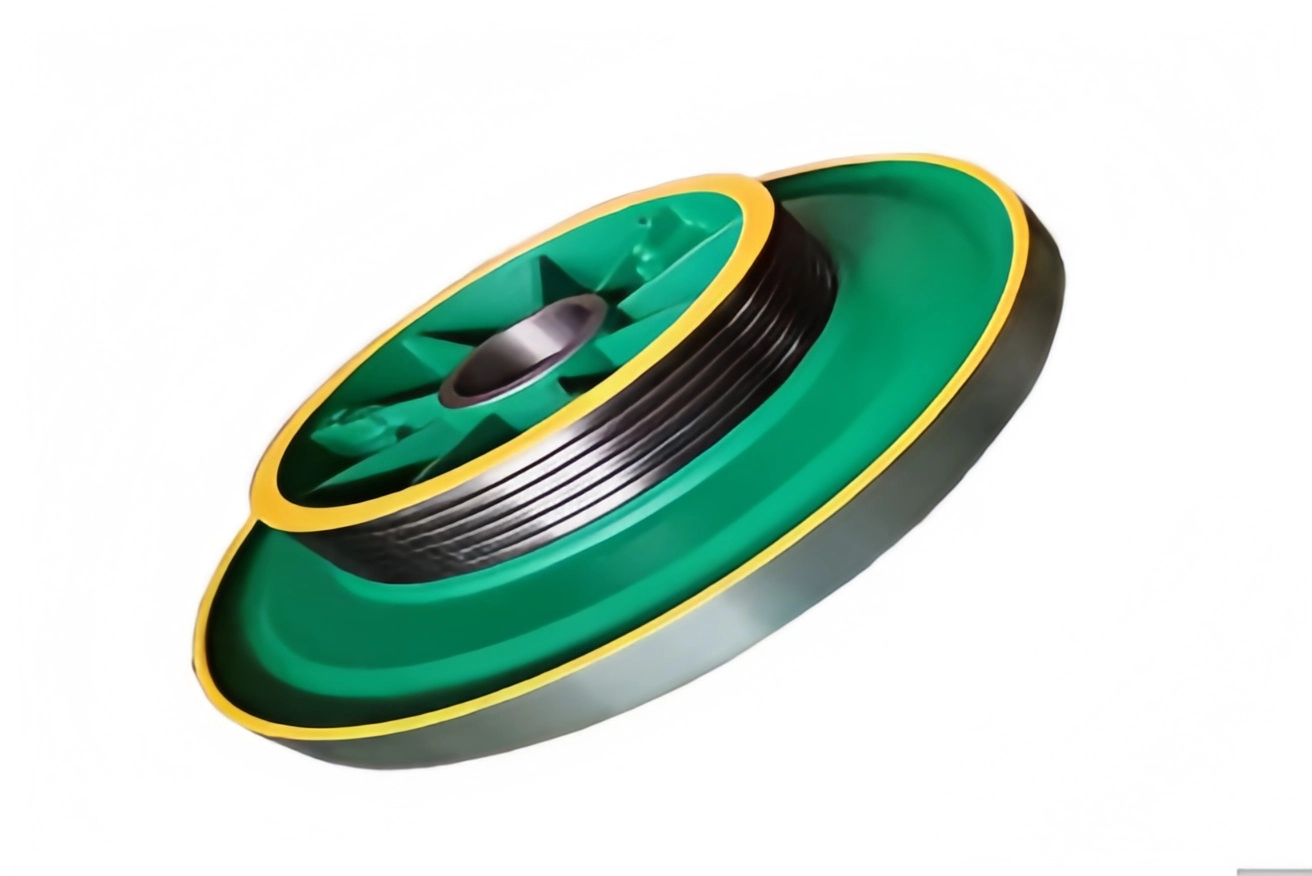

- Load-bearing design for heavy-duty products: The traction sheave has a rated weight of 80 kg.
- Blind hole and recesses cleaning design: Equipped with mobile spraying featuring multi-angle nozzles to ensure the blind holes and recesses are thoroughly cleaned.
- Drying efficiency: Mobile air knives guarantee the blind holes and recesses are thoroughly dried.
- Automatic 90-degree flipping during unloading: The product is laid flat and then conveyed to the next process.
Equipment Complete Process Flow
| No. | Process Name | Treatment Method | Heating Power | Medium | Temperature | Time (sec) | Filtration Precision |

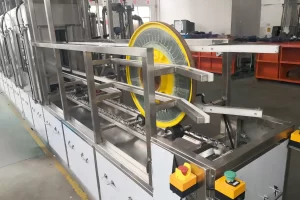

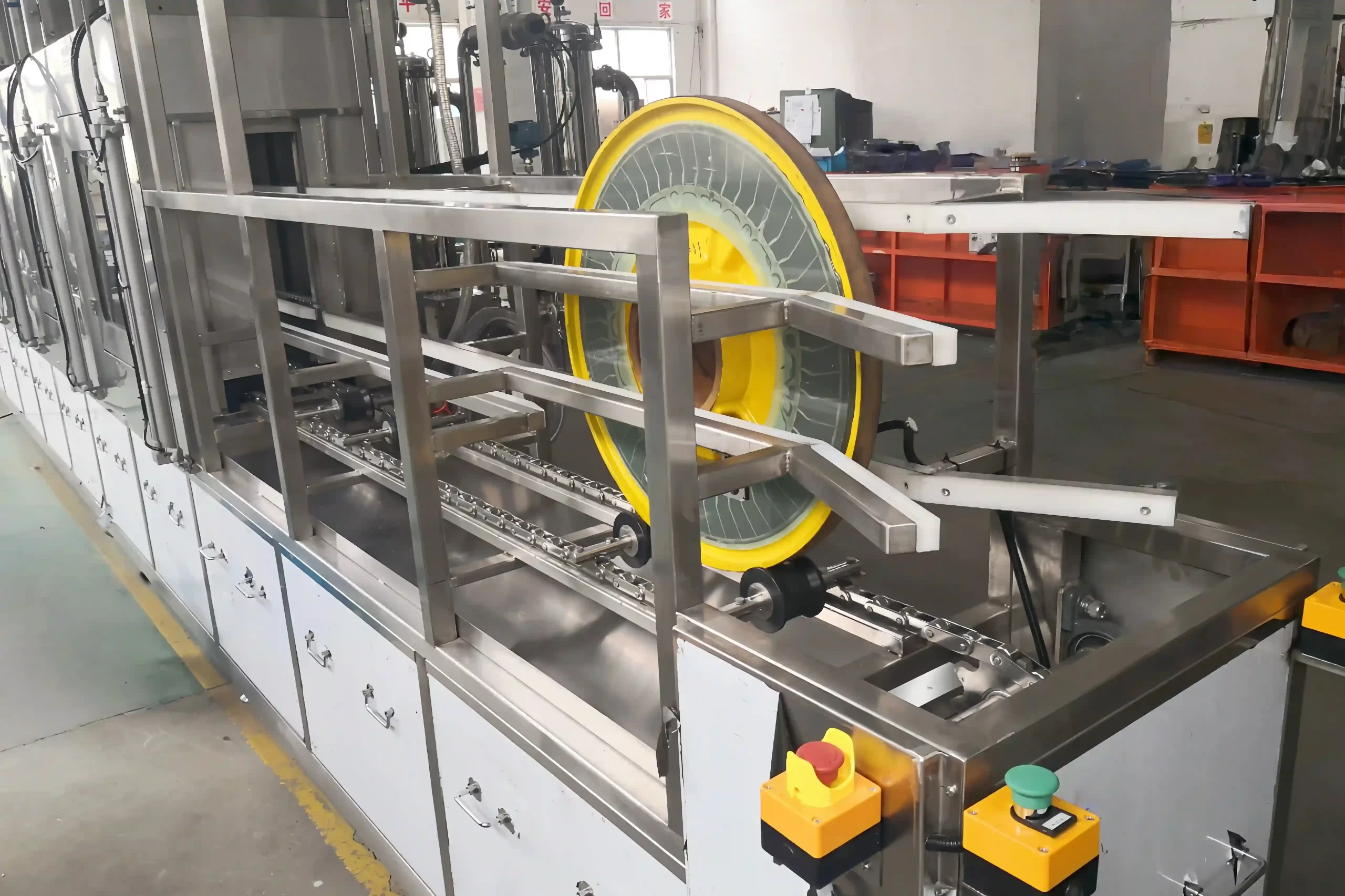

| – | Manual Loading | – | – | – | – | – | – |
| 1 | Spray Degreasing Cleaning | Spray | 24 kW | Tap Water + Cleaning Agent | RT~70℃ | 1～5 | 20 μm |
| 2 | Spray Rinsing | Spray | 12 kW | Tap Water | RT~50℃ | 1～5 | 10 μm |
| 3 | Spray Rust Prevention | Spray | 12 kW | Tap Water + Rust Inhibitor | RT~50℃ | 1～5 | 5 μm |
| 4 | Hot Air Drying | Air Cutting | 13.5 kW | Compressed Air | – | 1～5 | – |
| 90-degree Flipping – Automatic Unloading | |||||||
Equipment Parameters
| Item | Data |
| Overall Equipment Dimensions | 10000mm × 1800mm × 2500mm (L×W×H) |
| Electrical Power | ≤65 kW (Adopting an energy-saving design: about 30 KW in actual use when all functions are turned on simultaneously; more energy-efficient when heating is turned on selectively) |
| Standard Product Size | Φ640*136mm (Compatible with other sizes) |
| Production Cycle | 2.5 minutes/piece (Adjustable) |
For more detailed requirements, or needs for products of other sizes and production capacities, please contact us. We will provide you with a free design plan.
